PM100, PM100E, PM300, SM300, PM300E, PM332E, PM400 Planter Monitors

DICKEY-john® offers a complete line of monitors to help equip machines with cutting edge electronics to help you see multiple aspects of your equipment from the seat of your very own tractor. Knowing that your machines are performing properly, ensures you are optimizing yield potential and profitability by making sure planting rates, planting quality, and other critical parameters are on target. Knowing when an issue comes up on the machine can be identified quickly and easily so it can be corrected immediately. Pairing DICKEY-john® monitors with DICKEY-john® population and blockage sensors allows you to have the best combination possible on your equipment. Different levels of monitors will ensure the correct features are utilized for your specific equipment all the way from simple planting/no planting type monitors up to ISOBUS compatible monitors. DICKEY-john® has the correct model for every grower.

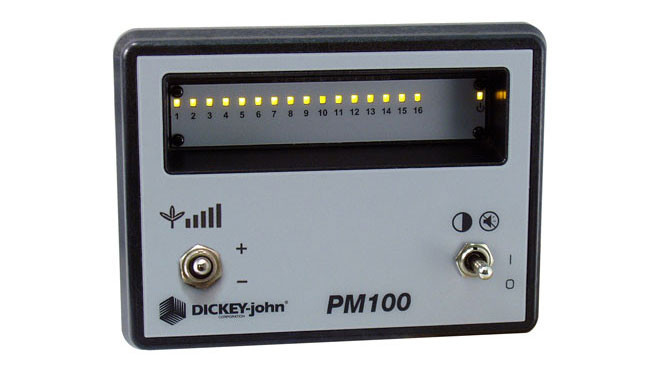

The DICKEY-john® PM100 and PM100E seed flow monitoring systems allow you to optimize your seed planting process. By monitoring the seed flow, the PM100 and PM100E help to reduce skips and misses in seeds with light-up LED indicator sensors. The PM100 and PM100E are cost-effective and easy-to-use solutions to provide you with the most accurate planting possible.

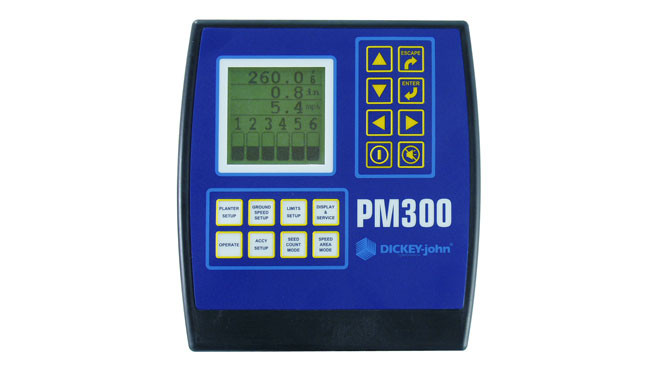

The DICKEY-john® PM300 Planter Monitor series allows you to monitor your seed and fertilizer application while delivering accurate ground speed measurement. The PM300 planter monitor is compatible with DICKEY-john® seed, flow, hopper level, and gear sensors to help you optimize your operation. The monitor allows for customization with a display that can be configured to output a comprehensive set of planter parameters so that you can maximize your results.

The DICKEY-john® PM400 planter monitor is the ideal choice for large-scale operations. With capabilities of monitoring up to 36 rows, the PM400 monitors seed and fertilizer flow with unmatched precision. The unit display screen can also be customized to output a comprehensive set of parameters so that you can maximize your results.

Features and Benefits:

Monitor up to 16 Rows (32 rows for the PM332 model)
Monitor ground speed, hopper levels and fan/shaft rotation
Displays:
Population (min, max, average)
Seed Spacing (min, max, average)
Seeds/Distance (min, max, average)
Field Area Up to 2
Total Area / Total Area per hour
Ground Speed
Fan, Shaft speed, flow indicator
Audible alarms
Automatic Sensor Detect
Ability to set up different sensor states: on, off, blockage and disabled
Ability to set different hi/low pop alarms
Adjustable bar graph size
Imperial or Metric Units
Simple and Easy to Use with large buttons
Backlit Display
Store up to 3 planter configurations
Password restriction to lock out screens
Display Individual Row Seed Counts
Customized Display
Single 37 pin implement lead
Area and population count
Accessory monitoring
